200W 100W Mono Flexible Solar Panel 20A/10A Solar Controller Module for Car RV Boat Home Roof Vans Camping 12V 24V Solar Battery
https://youtu.be/nFb2AkmRIo4?t=917
Specification
Maximum power(Pmax) 100W
Maximum system voltage 600V DC
Open circuit voltage(Voc) 19.8V
Short circuit current(Isc) 6.66A
Maximum power voltage(Vmp) 16.5V
Maximum power current(Imp) 6.06A
Number of cells 30pcs
Weight 2KG

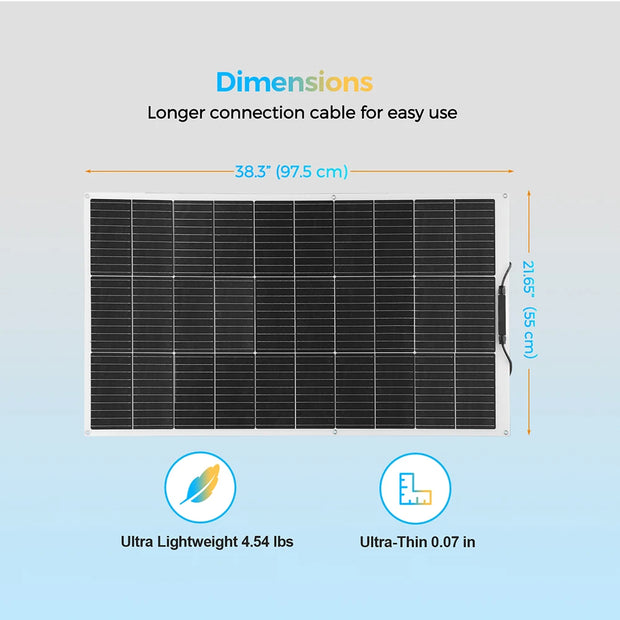

Size 975mm*550mm*3mm
Operating temperature(NOCT) 45 plus or minus 2 Celsius system
STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5
Please note that the solar panel power output refers to the test output at STC: lrradiance1000w/m2,Temperature 30 Celsius system, AM=1.5
The output power of other tests in different environments will be different. In addition, the solar panel needs to be in the sun to have output. If you want to test, you need to test it in the sun
product : solar controller
Rated Voltage: 12V 24V Auto
Application: solar system controller
Max. PV input Power: 130W (12V) 260W(24V)
1) Constructed by high quality material, eco-friendly, durable and sensitive.
2) High in power but sleek in size, it is the perfect item for off-grid applications. High efficiency, conversion rate 20-23%.
3) Emergency charging other 12V battery, suitable for 12V car/boat/motorcyle, etc. Wide range of applications (outdoor, forest, grassland and other power generation, charging, portable emergency charging)
4) Enjoy solar power , Power your RV on the road. Unique frameless design includes six metal reinforced mounting holes for easy installation
5) Sail with solar power and power up your camping gears.For continuous power supply as long as there has sun. Outstanding electrical performance under high temperature and weak light environments
6) Little noise, high efficiency, low malfunction. Rigorous quality control to meet the highest international standards CE,TUV
7) Portable and lightweight, easy for carrying.
Lightweight -XINPUGUANG's 100Watt solar panel weighs 1.9kg, which is one-half the weight of a conventional solar panel, making it very portable.

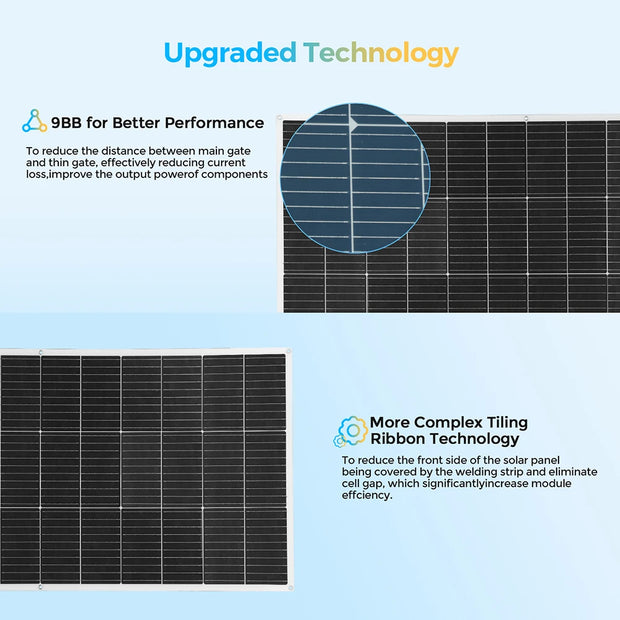

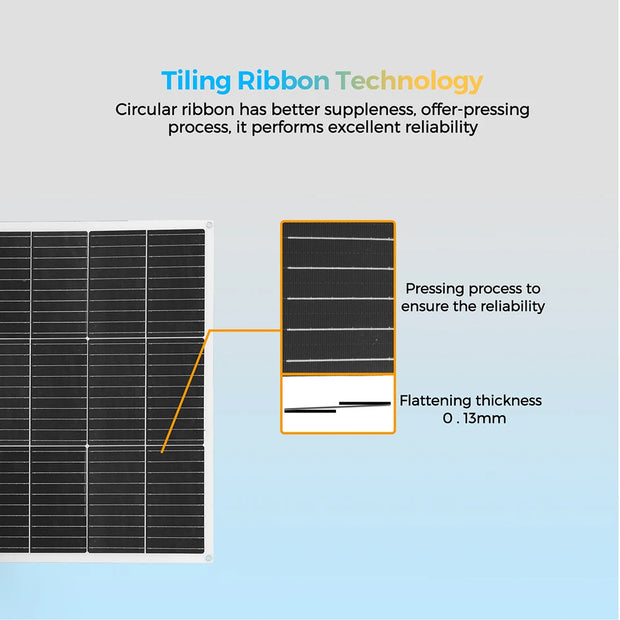

High Efficiency - The solar panel is made with the latest technology PERC high efficiency monocrystalline silicon cells with a conversion rate of 23%. Cut and aligned tightly, the panels are smaller and more suitable for installation on different flat surfaces.
Intelligent-The conntroller have multipleload control modes enable it can be widely used on solar off grid system，System voltage of battery 12V/24V or automatic recognition;Intelligent 4 stages PWM charging: Bulk, Absorption, Equalize, Float；Support more kinds of battery: Lead-acid battery (Sealed, Gel, Flooded) and Lithium battery (LiCoMnNiO2, LiFePO4)
Flexible solar panel Specification
Maximum power(Pmax) 100W
Maximum system voltage 700V DC
Open circuit voltage(Voc) 23.76V
Short circuit current(Isc) 5.55A
Maximum power voltage(Vmp) 19.8V
Maximum power current(Imp) 5.05A
Weight 1.9KG
Size 1060*530*2.5mm / 955*530*2.5mm
Operating temperature(NOCT) 45 plus or minus 2 Celsius system
STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5
Package List
100W Solar Panel=1 pcs 100W flexible solar panel
200W Solar Panel=2 pcs 100W flexible solar panel

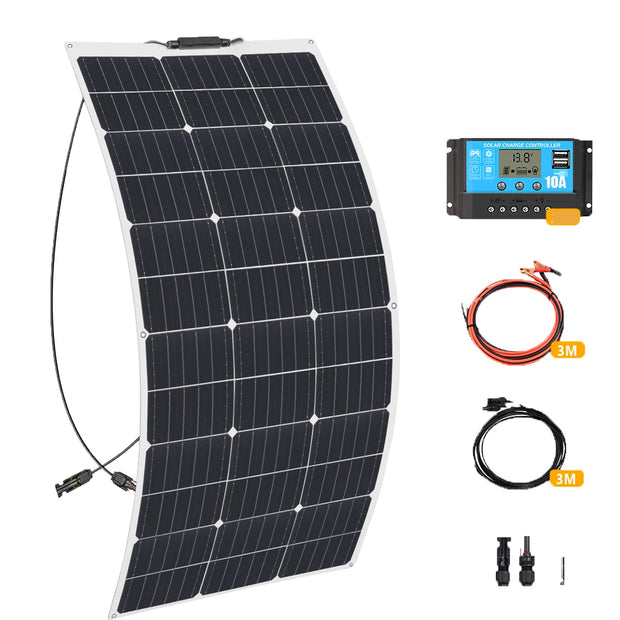

100W Solar Kit Package List
▶100W 19.8V solar panel *1
▶10A 12V/24V solar charger regulator *1
▶3 meter extend cables *1
▶1 meter cable with alligator clips *1

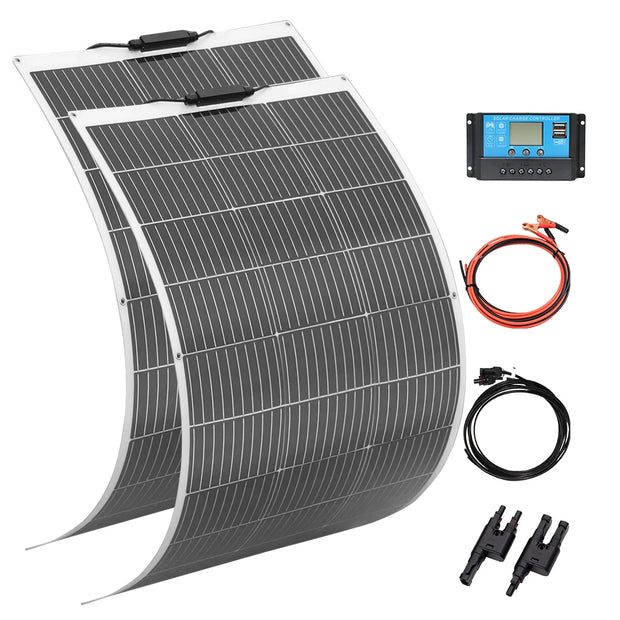

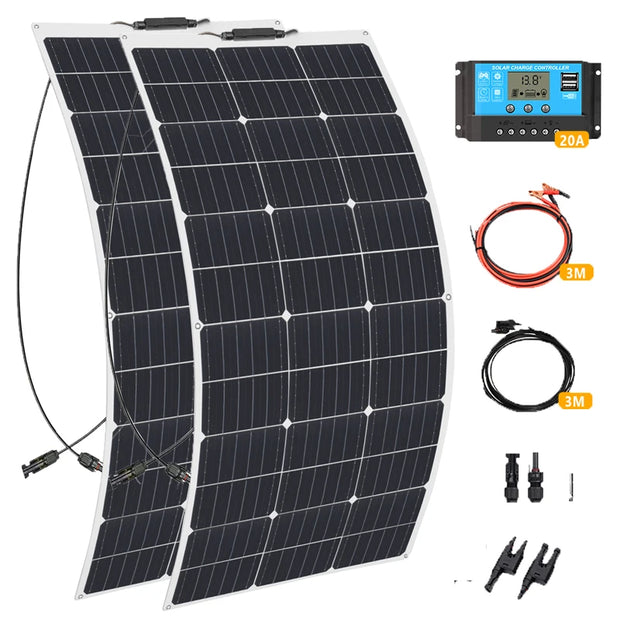

200W Solar Kit Package List
▶100W 19.8V solar panel *2
▶20A 12V/24V solar charger regulator *1
▶3 meter extend cable *1
▶1 meter cable with alligator clips *1
▶2-in-1 PV parallel adapter *1
